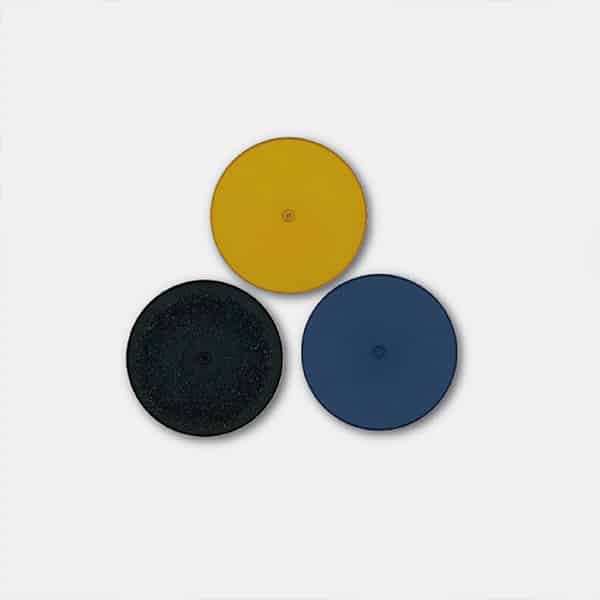

Token Tag
Token Tag is created by polycarbonate into a coin shape. It is popular for vending machine and toll collection application.
Play Video
Specifications
| Dimensions (mm) | D 30 x T 3 | D 30 x T 3 |
| Material | PC | ABS+PC |
| Frequency | LF/ HF/ UHF(US/FCC) UHF(EU/ETSI) | HF |
| Operating Temperature(°C) | -25 to 75 | -10 to 50 |
| Storage Temperature(°C) | -40 to 90 | -20 to 75 |
| IP Rating | IP68 | IP68 |
| Applicable Surface | Non-metal | Non-metal |
| RFID Chip | MICROCHIP ATA5577 Sony Felica RC-S966 EM4200 EM4450 | NXP MIFARE Classic EV1 |
| NFC Standard | Type 3 | n/a |
| RF Interface Protocol | ISO/IEC 18092 | ISO/IEC 14443A |
| Color | Black / Blue / Yellow | |
| Options | Pad Printing/ Laser Engraving | Pad Printing/ Laser Engraving |
