Overmolded Metal Stick Tag

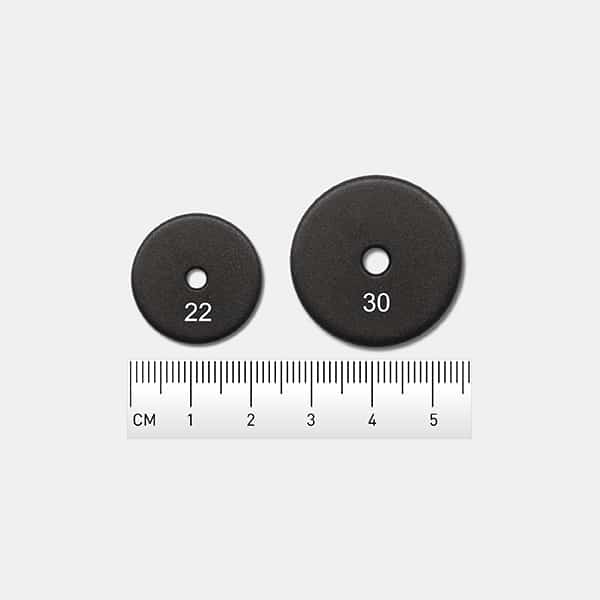

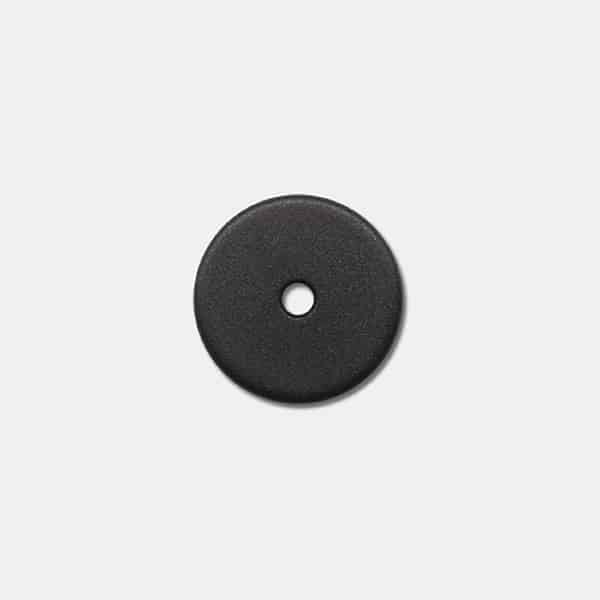

Overmolded Metal Stick Tag (size 22/30mm in diameter) has a slim but robust housing (IP68 rated) for industrial applications. The tag can be mounted to items with metal surface by using adhesive or screw in the 3.1/5mm central hole. The flat surface can be laser marked with logo or numbering to assist visual identification.
Application: , Features: , ,
播放影音

Specifications

Dimensions (mm)OD 22 x ID 3.1 x T 3OD 30 x ID 5 x T 3
MaterialNylon
FrequencyHF
Operating Temperature(°C)-40 to 85
Storage Temperature(°C)-40 to 120
IP RatingIP68
Applicable SurfaceOn-metalOn-metal
RFID ChipNXP ICODE SLIX
NXP NTAG213
Fujitsu MB89R118
NXP ICODE SLIX
NXP NTAG213
NFC StandardTyep 2 / Type 5Type 2 / Type 5
RF Interface ProtocolISO/IEC 15693
ISO/IEC 14443A
ISO/IEC 15693
ISO/IEC 14443A
ColorBlackBlack
OptionsInkjet Engraving
Laser Engraving
Adhesive
