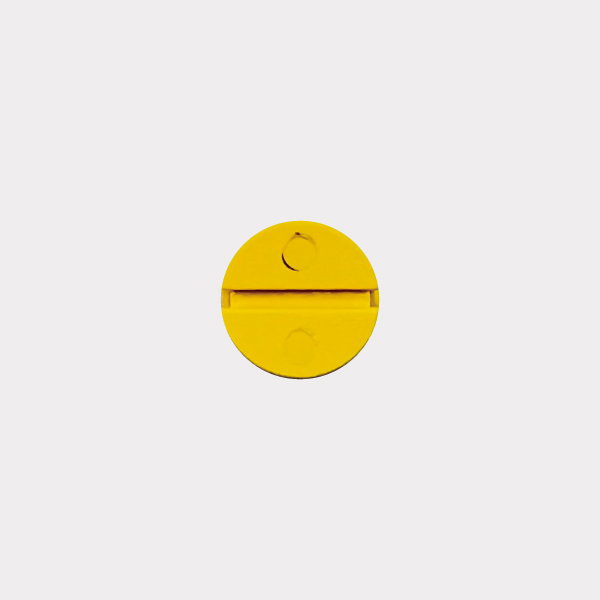

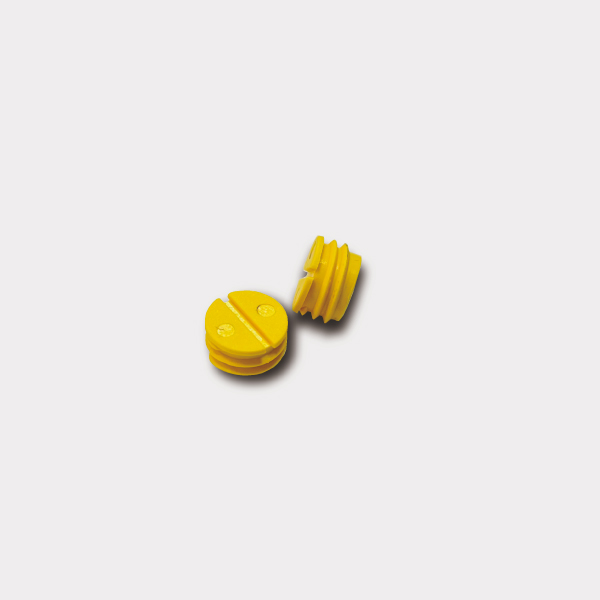

M7 Plug Metal Tag

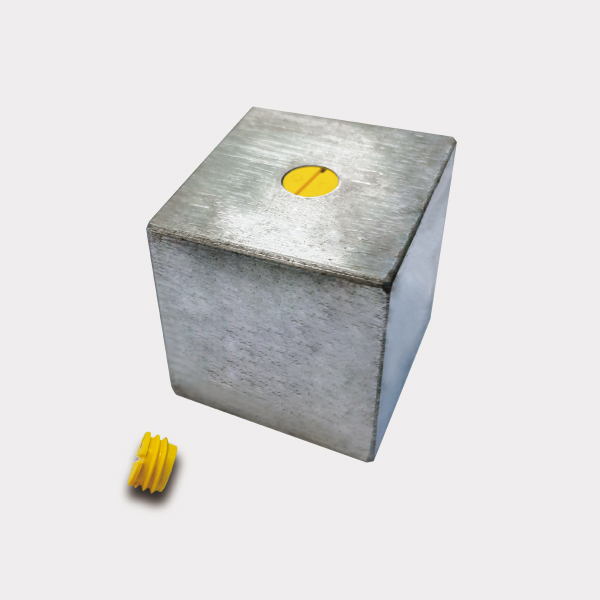

M7 Plug Metal Tag resembles a metric bolt (M7xP1.0mm). This tag is designed to be screwed into a metallic object (taped with thread) and work with inductive couplers. Featuring the small tag size, It ideally goes to tool and equipment with small space, helping to provide the visibility and smart management in a production facility. Equipped with NXP ICode SLIX, this tag is compliant with ISO15693 and NFC forum type 5 protocol.
Application: Automotive, Industrial, NFC
Features: Embeddable, Waterproof
播放影音
Specifications
Dimensions (mm) | M7*P1.0xH4 |
Material | Nylon |
Frequency | HF |
Operating Temperature(°C) | -40 to 85 |
Storage Temperature(°C) | -40 to 85 |
IP Rating | IP68 |
Applicable Surface | In-metal |
RFID Chip | NXP ICode SLIX |
RF Interface Protocol | ISO/IEC 15693 |
Color | Yellow |
