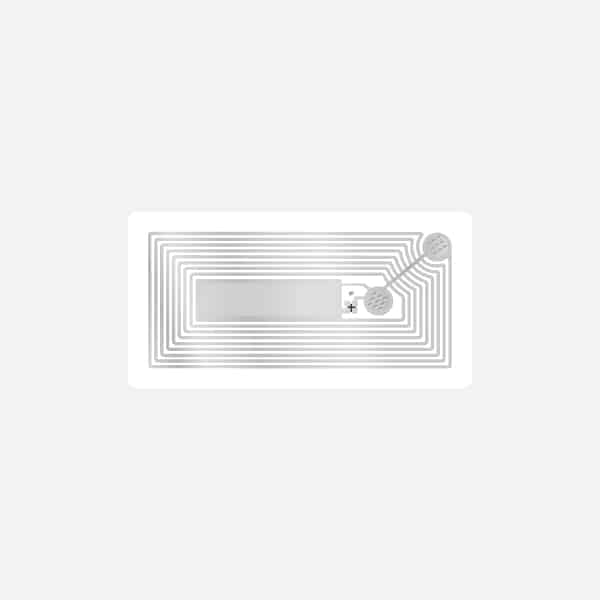

18 x 35 HF Smart Label
To fulfill various requirements in RFID market, SAG consistently create and provide more options of RFID transponders for worldwide customers. Now, SAG is pleased to release a new format of HF Inlay / Label which is available with NXP NTAG213, MIFARE Ultralight & ICODE SLIX chips at present.
播放影音
Specifications
| Die Cut Size | 18 x 35 |
| Antenna Size | 14 x 31 |
| Material | synthetic paper / art paper/ PET |
| Frequency | HF |
| Operating Temperature (°C) | -25 to 70 |
| Storage Temperature (°C) | -25 to 70 |
| Applicable Surface | Non-metal |
| RFID Chip | NXP NTAG213 NXP ICODE SLIX/SLIX2 NXP ICODE ILT-M ST25TV512 |
| NFC Standard | Type 2 / Type 5 |
| RF Interface Protocol | ISO/IEC 14443A, ISO/IEC 15693 |
| Options | preprinted artwork, thermal transfer for QR code/ Barcode/ UID printing |
