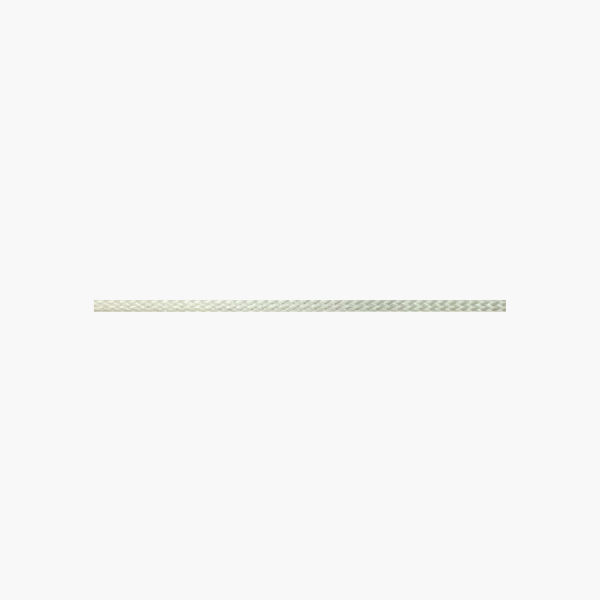

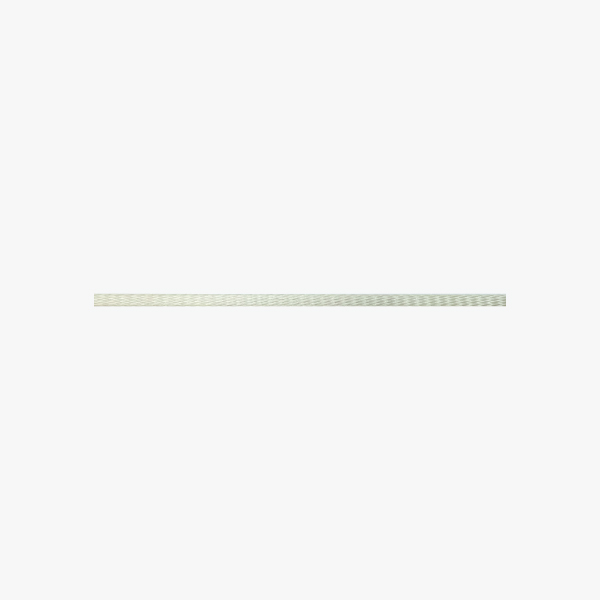

RFID ECORE Pro (Yarn-type Tag)
RFID ECORE Pro (Yarn-type Tag) features its flexible and bendable design to be embedded in non-metal items. The yarn-type form factor offers a unique way of RFID attachment to digitalize tracking and identification of fabric, cable, wire or items with narrow structire or limited space. Though in a high temperature and chemical exposure. RFID ECORE Pro opens every tagging possibility and helps create innovations with future potential.
Specifications
| Product | ECORE Pro | ECORE Pro Wide |
| Dimensions (mm) | L 76 x W 2.5 x T 1.55 | L 90 x W 5.4 x T 1.55 |
| Frequency | UHF(US/FCC) UHF(EU/ETSI) | UHF(US/FCC) UHF(EU/ETSI) |
| RFID Chip | NXP UCODE 8 | NXP UCODE 8 |
| Operating Temperature(°C) | -40 to 85 | -40 to 85 |
| Storage Temperature(°C) | -40 to 85 | -40 to 85 |
| Peak Temperature | 210°C for 2 minutes(FTTS-YA-186 4.8.1) | 210°C for 2 minutes(FTTS-YA-186 4.8.1) |
| Wash Cycle Stability | 60°C for 100 times(AATCC 135) | 60°C for 100 times(AATCC 135) |
| RF Interface Protocol | ISO 18000-6C /EPC Gen2V2 | ISO 18000-6C /EPC Gen2V2 |
| Resistance to Damage by Flexing | ≥1,000 times(ISO 7854) | ≥1,000 times(ISO 7854) |
| Tensile Strength | 5cm/min≥1kgf(ASTM D2256) | 5cm/min≥1kgf(ASTM D2256) |
