CoreX – NFC Ferrite Tag 0503

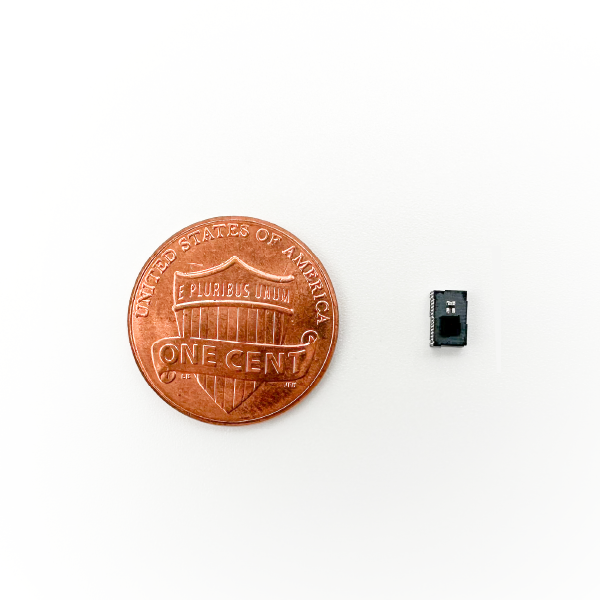

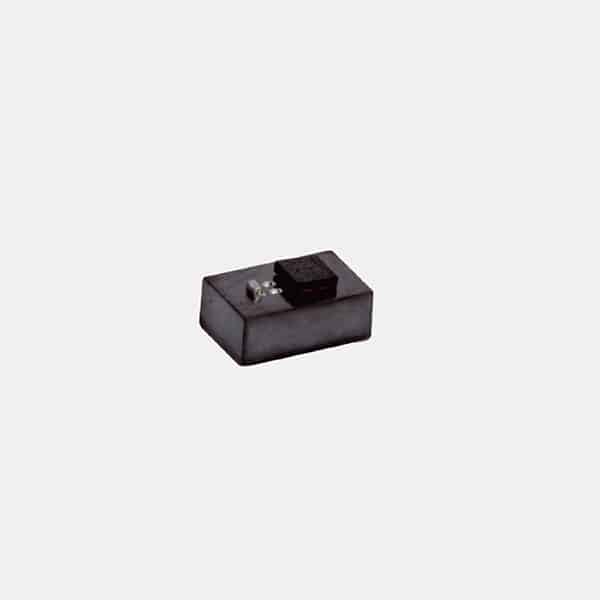

CoreX – NFC Ferrite Tag 0503 features its small and compact size. It can be embedded to an item to instantly empower it with NFC function. Meanwhile, CoreX – NFC Ferrite Tag 0503 has superior heat tolerance to survive extreme use condition.
Play Video
Specifications

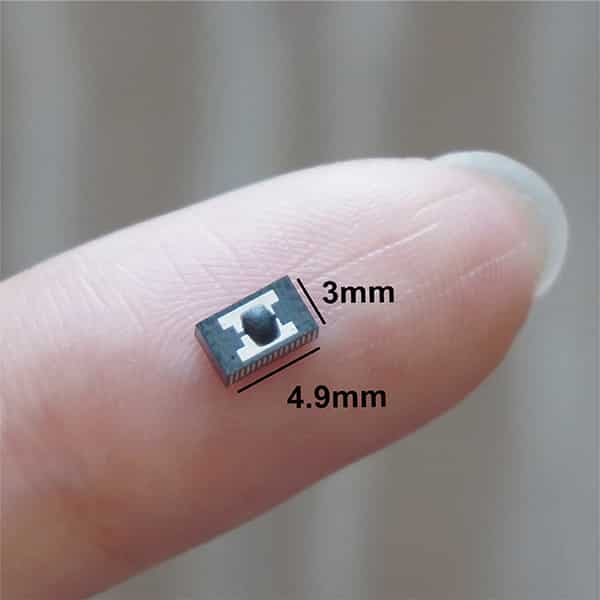

| Dimensions (mm) | L 4.9 x W 3.0 x T 2.5 |
| Material | Ferrite |
| Frequency | HF |
| Operating Temperature(°C) | -40 to 85 |
| Storage Temperature(°C) | -80 to 220 |
| Applicable Surface | On-metal Non-Metal |
| RFID Chip | NXP ICODE SLIX NXP NTAG213 ICODE DNA ST25TV02K ST25TA02K FUJITSU MB89R118 |
| NFC Standard | Type 2 / Type 5 |
| RF Interface Protocol | ISO/IEC 15693 ISO/IEC 14443A |
