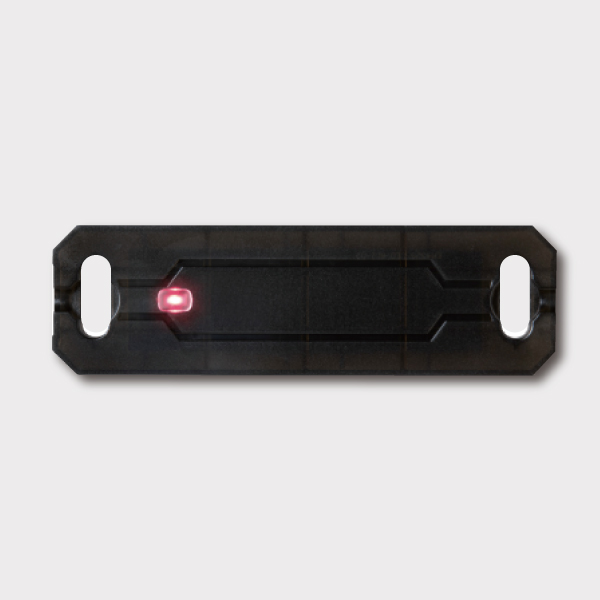

LED Tag

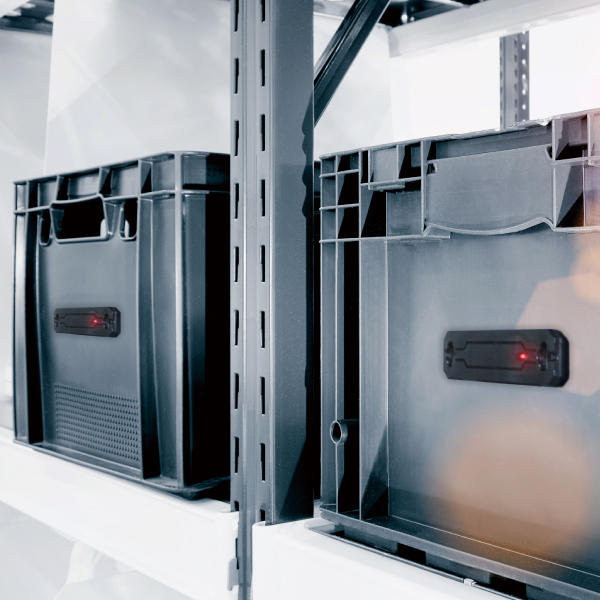

LED Tag is a UHF tag embedded with LEDs. It swiftly identify tagged items and also allows for the additional functions of quick search and single product positioning. Made of translucent nylon, the tag light can be seen even from the side. The LED can be turned on from a distance of up to 8 meters. It is powered by a long-lasting common button battery. When the tagged item needs to be found, the person looking for it selects the item number on the reader. In setting up the system, user marry items with the tag’s EPC numbers. Therefore, the LED lights on the RFID tag of the item in question start flashing. This allows users to identify the managed items quickly and intuitively.
Play Video

Specifications

Dimensions (mm)L 100 x W 30 x T 9
MaterialNylon
FrequencyUHF(US/FCC)
Operating Temperature(°C)-30 to 60
Storage Temperature(°C)-20 to 60
IP RatingIP68
Applicable SurfaceNon-metal
RFID ChipEM4325
RF Interface ProtocolISO 18000-6C /EPC Gen2V2
ColorTranslucent black housing
OptionsSerial number laser marking
Read Range (meter)8
