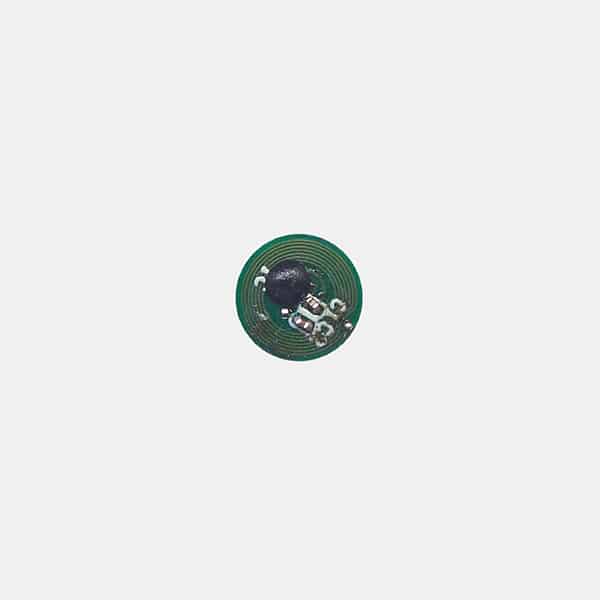

CoreX – PCB Metal Tag
CoreX – PCB Metal Tag features its flexibility and availability in different sizes. In its preliminary format, PCB Tag can fit into items by insert molding process. For 6.0 type, it ideally goes to small containers and makes them to be identified in a contactless way. It helps realize asset management for small item and tool with small space for tagging.
Play Video
Specifications
| Dimensions (mm) | D6 x T1.1 |
| Material | PCB |
| Frequency | HF |
| Operating Temperature(°C) | -25 to 55 |
| Storage Temperature(°C) | -25 to 85 |
| IP Rating | IP65 |
| Applicable Surface | On-metal |
| RFID Chip | NXP NTAG213/215/216 NXP NTAG424DNA/424DNA TT NXP ICODE SLIX NXP ICODE SLIX-S NXP MIFARE Classic EV1 NXP MIFARE DESFire EV2 NXP MIFARE DESFire EV3 |
| NFC Standard | Type 5 |
| RF Interface Protocol | ISO/IEC 15693 |
| Options | Adhesive |
