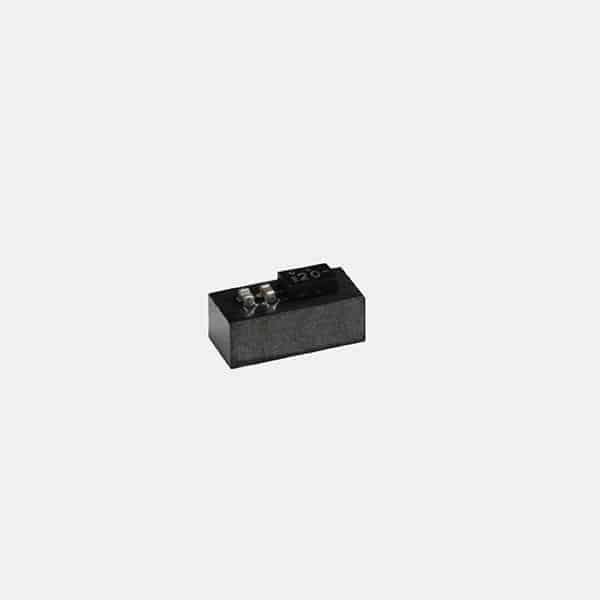

CoreX – NFC Ferrite Tag 0402

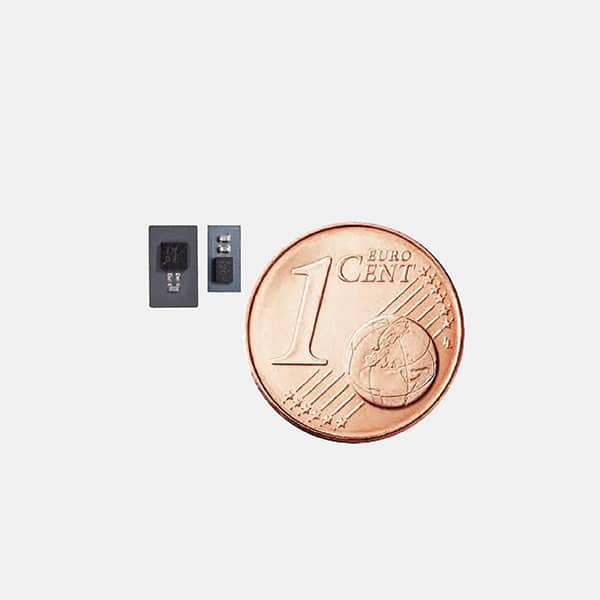

CoreX – NFC Ferrite Tag 0402 features its small and compact size.It can be embedded to instantly empower an item with NFC function. Meanwhile, CoreX – NFC Ferrite Tag 0402 has superior heat tolerance up to 200 degrees in Celsius to survive extreme use condition.
Application: NFC, Consumer Electronics, Healthcare
Features: Embeddable, Harsh Environment Resistant, High Temperature Resistant, On-metal Reading, Tags
Play Video



Specifications
| Dimensions (mm) | L4.0 x W2.0 x T2.0 |
| Material | Ferrite |
| Frequency | HF |
| Operating Temperature(°C) | -40 to 85 |
| Storage Temperature(°C) | -80 to 220 |
| Applicable Surface | On-metal Non-Metal |
| RFID Chip | NXP ICODE SLIX ST25TV02K |
| NFC Standard | Type 5 |
| RF Interface Protocol | ISO/IEC 15693 |
