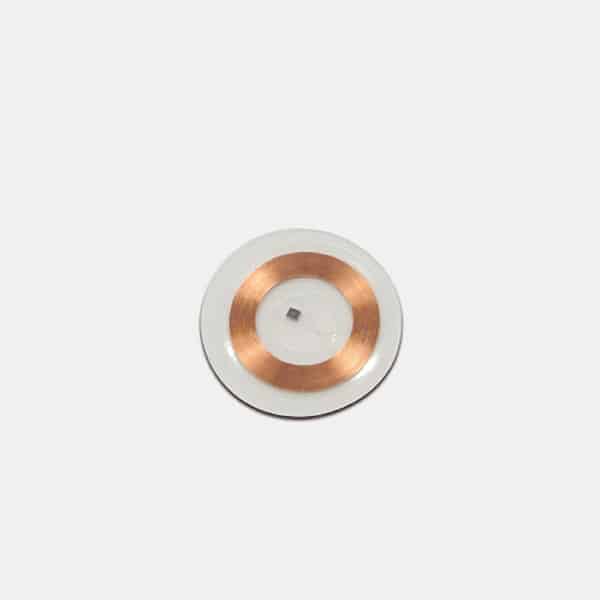

Clear Disc Tag
Clear Disc Tag is designed for use on non-metal surface and often used for general tagging pourposes such as product identification, asset management, and item tracking. Clear Disc Tag is a cost-effective RFID Tag due to its simple form factor and it can be made in different sizes. *Clear Disc Patch Tag is Clear Disc Tag with a sticker (adhesive backing) so that it can be attached to an item in a quick and easy way.
Play Video
Specifications
| Dimensions (mm) | D 20 x T 1.0 | D 25 x T 1.0 | D 30 x T 0.45 D 30 x T 1 (with adhesive) | D 35 x T 1.0 | D50 xT1.0 |
| Material | PET | PET | PET | PET | PET |
| Frequency | LF/ HF | LF/ HF | LF/ HF | LF/ HF | LF |
| Operating Temperature(°C) | -15 to 55 | -15 to 55 | -15 to 55 | -15 to 55 | -15 to 55 |
| Storage Temperature(°C) | -15 to 55 | -15 to 55 | -15 to 55 | -15 to 55 | -15 to 55 |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Applicable Surface | Non-metal | Non-metal | Non-metal | Non-metal | Non-metal |
| RFID Chip | MICROCHIP ATA5577 NXP MIFARE Classic EV1 NXP MIFARE DESFire EV2/EV3 NXP ICODE SLIX NXP HITAG 1/ NXPHITAG S2048/ NXPHITAG S256/ NXP NTAG213 Sony Felica RC-S966 Fujitsu MB89R118 EM4102 EM4200 EM4450 LEGIC MIM256 | MICROCHIP ATA5577 NXP MIFARE Classic EV2/EV3 NXP MIFARE DESFire EV2/EV3 NXP HITAG 1/HITAG 2 Fujitsu MB89R118 EM4102 EM4200 LEGIC MIM256/MIM1024 LEGIC ATC1024/ATC2048 Infineon SRF55V10P | MICROCHIP ATA5577 NXP MIFARE Classic EV1 NXP MIFARE DESFire EV2/EV3 NXP ICODE SLIX NXP HITAG 1/HITAG 2 NXP HITAG S Fujitsu MB89R118 EM4102 EM4200 | NXP MIFARE Classic EV1 NXP HITAG 2 | NXP HITAG S EM4102 |
| NFC Standard | Type 2 / Type 3 / Type 4 / Type 5 | Type 4 | Type 4 / Type 5 | n/a | n/a |
| RF Interface Protocol | ISO/IEC 15693 ISO/IEC 14443A | ISO/IEC 15693 ISO/IEC 14443A | ISO/IEC 15693 ISO/IEC 14443A | ISO/IEC 14443A | n/a |
| Options | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive |
