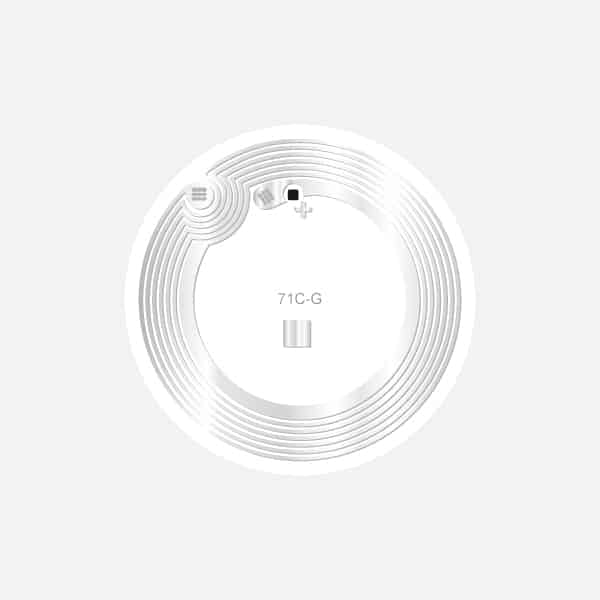

CD/DVD Label
CD/DVD label is a simple and cost-effective product solution to enable contactless identification. Applying this Label to CD/DVD helps reduce not only human errors but also the workload when it comes to rental management in a more efficient way. Powered by NXP ICode SLIX, this label is compliant with ISO15693 and offers the possibility of operating multiple labels simultaneously thanks to the chip’s anticollision function.
播放影音
Specifications
| Die Cut Size | 35phi (center hole 16 mm) | 38phi (center hole 16 mm) |
| Antenna Size | coil antenna | 35phi |
| Material | synthetic paper / art paper/ PET | synthetic paper / art paper/ PET |
| Frequency | LF | HF |
| Operating Temperature (°C) | -15 to 55 | -15 to 55 |
| Storage Temperature (°C) | -15 to 55 | -15 to 55 |
| Applicable Surface | Non-metal | Non-metal |
| RFID Chip | EM4102 | NXP ICODE SLIX |
| NFC Standard | n/a | Type 5 |
| RF Interface Protocol | ISO/IEC 11784/85 Compatible | ISO/IEC 15693 |
| Options | preprinted artwork, thermal transfer for QR code/ Barcode/ UID printing | preprinted artwork, thermal transfer for QR code/ Barcode/ UID printing |
