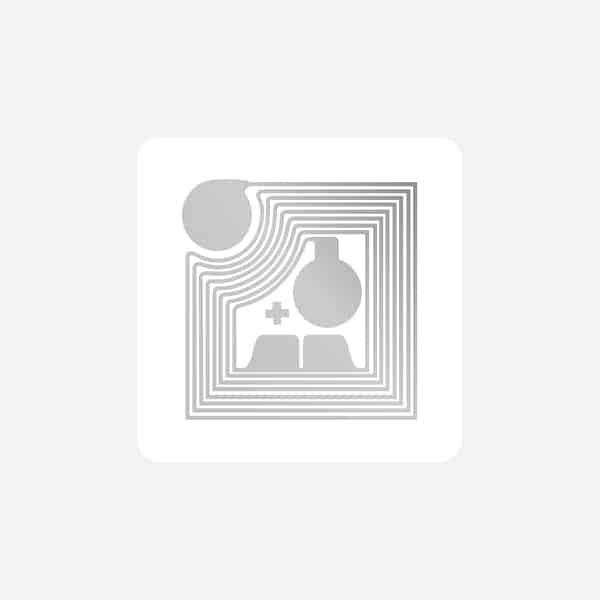

12.5 x 12.5 HF Smart Label
HF smart label is ideal for easy tagging onto a non-metallic item to assist product authentication, tracking, or asset management. SAG specializes in small-sized inlay/label to suit your need.
Play Video
Specifications
| Die Cut Size | 12.5 x 12.5 | ||||||||||||||||||||
| Antenna Size | 10.5 x 10.5 | ||||||||||||||||||||
| Material | synthetic paper / art paper/ PET | ||||||||||||||||||||
| Frequency | HF | ||||||||||||||||||||
| Operating Temperature (°C) | -25 to 70 | ||||||||||||||||||||
| Storage Temperature (°C) | -25 to 70 | ||||||||||||||||||||
| Applicable Surface | Non-metal | ||||||||||||||||||||
| RFID Chip | NXP ICODE SLIX ST25TA02K ST25TV02K | ||||||||||||||||||||
| NFC Standard | Type 5 | ||||||||||||||||||||
| RF Interface Protocol | ISO/IEC 15693 | ||||||||||||||||||||
| Options | preprinted artwork, thermal transfer for QR code/ Barcode/ UID printing |
