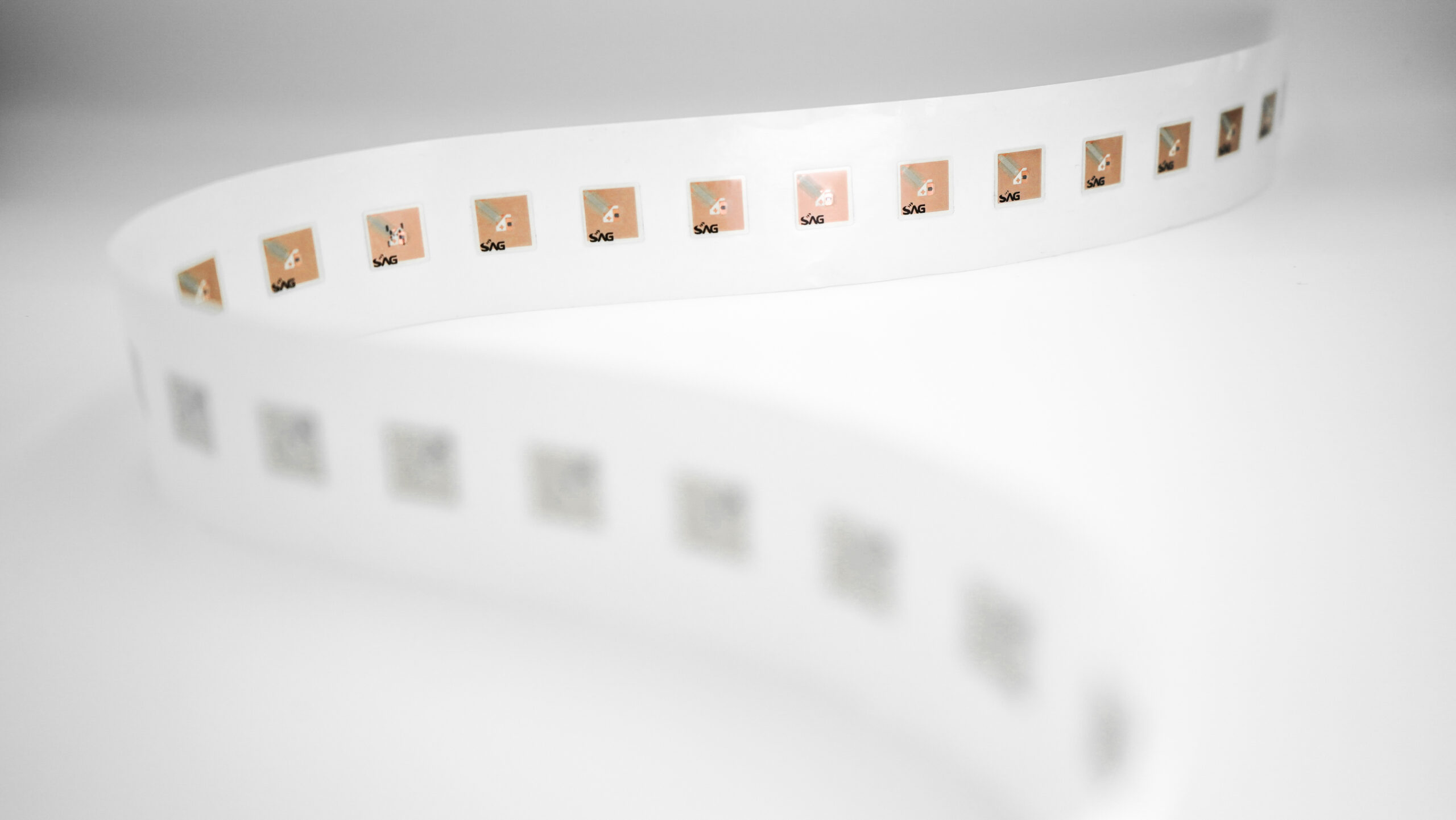

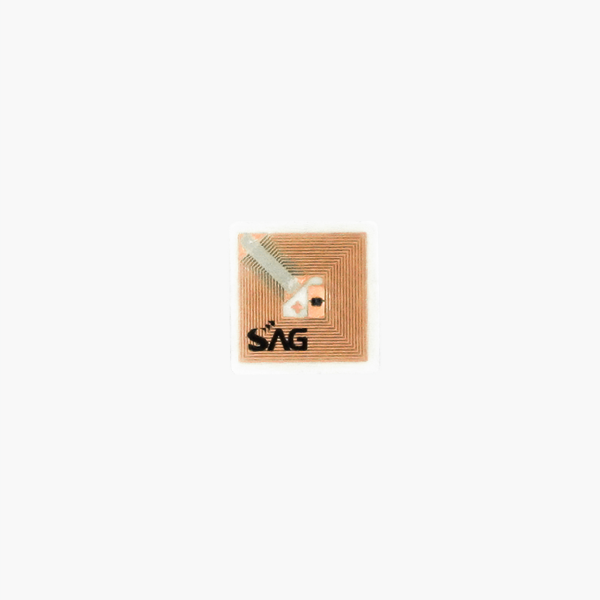

10 x 10 HF Smart Label
10×10 HF Smart Label is built with etched copper antenna and RFID chip. It features ultra small size which opens more tagging possibilities where confined space poses a challenge. Equipped with NXP ICode SLIX, this label is compliant with ISO15693 and offers the possibility of operating multiple labels simultaneously in the field of the reader antenna (anticollision function). This miniature label enhances operational efficiency and accuracy for tool tracking and asset management.
Play Video
Specifications
| Die Cut Size | 10 x 10 |
| Antenna Size | 8.5 x 8.5 |
| Material | synthetic paper / art paper/ PET |
| Frequency | HF |
| Operating Temperature (°C) | -25 to 70 |
| Storage Temperature (°C) | -25 to 70 |
| Applicable Surface | Non-metal |
| RFID Chip | NXP ICODE SLIX |
| NFC Standard | Type 5 |
| RF Interface Protocol | ISO/IEC 15693 |
